Part #: N23D-444-12346-003

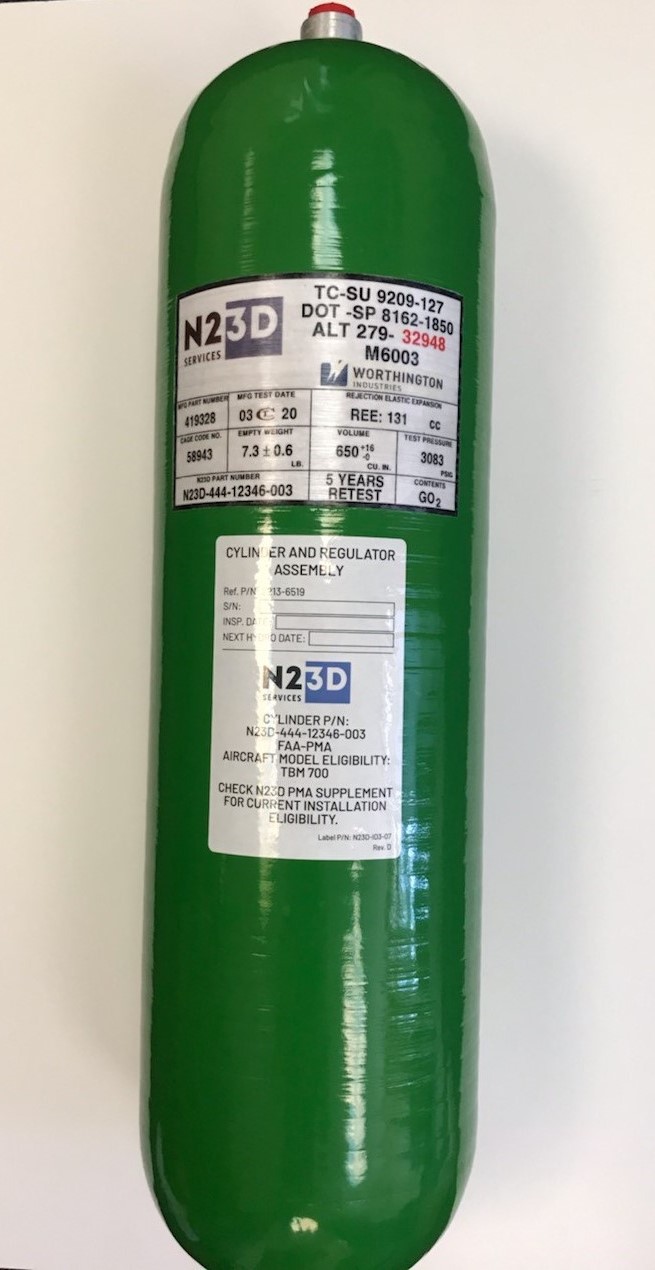

The N23D-444-12346-003 cylinder is a FAA-PMA approved replacement for Intertechnique cylinder P/N 444-12346-003. The N23D-444-12346-003 PMA cylinder is manufactured to the same DOT specification as the Intertechnique cylinder P/N 444-12346-003. The cylinder is constructed of a seamless aluminum liner with a carbon fiber epoxy resin base wrap with S-glass composite overwrap and polyurethane top coating. The N23D-444-12346-003 PMA cylinder is eligible for installation into the Oxygen Systems on Daher TBM700 aircraft

   Part No.

N23D-444-12346-003​

  Replaces Part No.

Intertechnique
444-12346-003

   Applies to

Daher TBM700

1 Supplement No. 17

Check Supplement for detailed Eligibility list

All images used are for illustrative purposes only. The specifications of cylinders is correct at the date published but may be subject to change as necessary and without notice. Images are indicative of the quality and style of the specification and may not represent wholly the actual product.
